Original code, based on code from the free E-book Computational Physics: Problem Solving with Python, 3rd edition, by Landau, Páez, and Bordeianu. Modified primarily to use matplotlib instead of VPython.
from numpy import *
import matplotlib.pyplot as plt
Xmax = 40.0
Xmin = 0.25
step = 0.1 # Global class variables
order = 10
start = 50 # Plot j_order
graph1, ax1 = plt.subplots(figsize=(5, 5))
ax1.set_title(
"Spherical Bessel, \
L = 1 (red), 10"
)
ax1.set_xlabel("x")
ax1.set_ylabel("j(x)")
ax1.set_xlim(left=Xmin, right=Xmax)
ax1.set_ylim(bottom=-0.2, top=0.5)
def down(x, n, m): # Method down, recurs downward
j = zeros((start + 2), float)
j[m + 1] = j[m] = 1.0 # Start with anything
for k in range(m, 0, -1):
j[k - 1] = ((2.0 * k + 1.0) / x) * j[k] - j[k + 1]
scale = (sin(x) / x) / j[0] # Scale solution to known j[0]
return j[n] * scale
for x in arange(Xmin, Xmax, step):

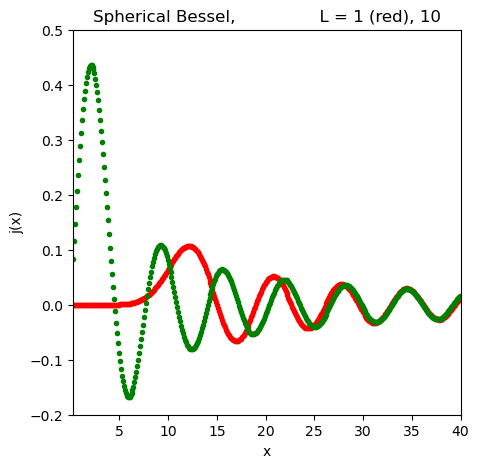

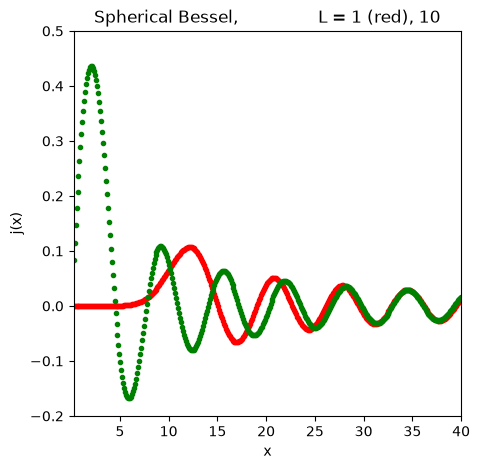

ax1.plot(x, down(x, order, start), "r.")
for x in arange(Xmin, Xmax, step):
ax1.plot(x, down(x, 1, start), "g.")
plt.show()
Try to clean it up. Two possible solutions: one closer to the original (but fixing some bugs, like the plot title color being wrong!):
Notebook Cell
import numpy as np
import matplotlib.pyplot as plt
x_max = 40.0
x_min = 0.25
step = 0.1
start = 50 # Plot j_order
def down(x, order, start):
"""
Method down, recurse downward.
"""
j = np.zeros((start + 2), dtype=float)
# Start with anything
j[start + 1] = j[start] = 1.0
for k in range(start, 0, -1):
j[k - 1] = ((2.0 * k + 1.0) / x) * j[k] - j[k + 1]
# Scale solution to known j[0]
scale = (np.sin(x) / x) / j[0]
return j[order] * scale
fig, ax = plt.subplots(figsize=(5, 5))

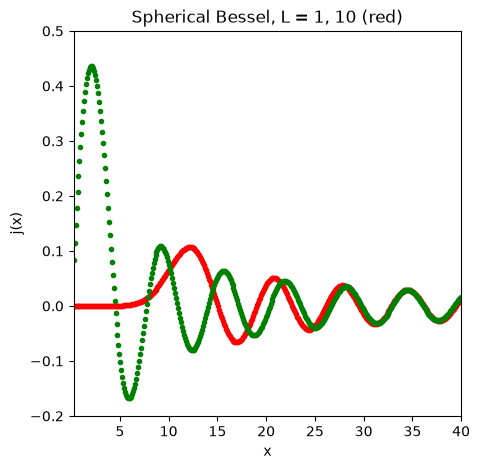

ax.set_title("Spherical Bessel, L = 1, 10 (red)")
ax.set_xlabel("x")
ax.set_ylabel("j(x)")
ax.set_xlim(x_min, x_max)
ax.set_ylim(-0.2, 0.5)
x = np.arange(x_min, x_max, step)
# Warning! red/green are bad colors to use, default colors are better
ax.plot(x, [down(x_i, 10, start) for x_i in x], "r.")
ax.plot(x, np.vectorize(down)(x, 1, start), "g.")
plt.show()
And one going a bit further and vectorizing the function properly, and fixing the color display:
Notebook Cell
import numpy as np
import matplotlib.pyplot as plt
x_min = 0.25
x_max = 40.0
step = 0.1
def down(x, order, start):
"""
Method down, recurse downward.
"""
j = np.zeros((start + 2, len(x)), dtype=float)
# Start with anything
j[start + 1] = j[start] = 1.0
for k in range(start, 0, -1):
j[k - 1] = ((2.0 * k + 1.0) / x) * j[k] - j[k + 1]
# Scale solution to known j[0]
scale = np.sin(x) / (x * j[0])
return j[order] * scale
fig, ax = plt.subplots(figsize=(5, 5))
ax.set_title("Spherical Bessel")
ax.set_xlabel("x")
ax.set_ylabel("j(x)")
ax.set_xlim(x_min, x_max)
ax.set_ylim(-0.2, 0.5)
x = np.arange(x_min, x_max, step)

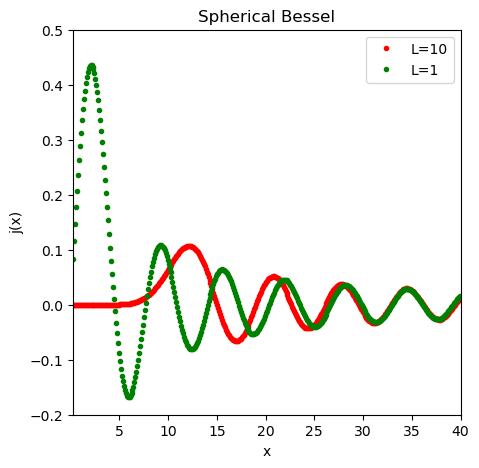

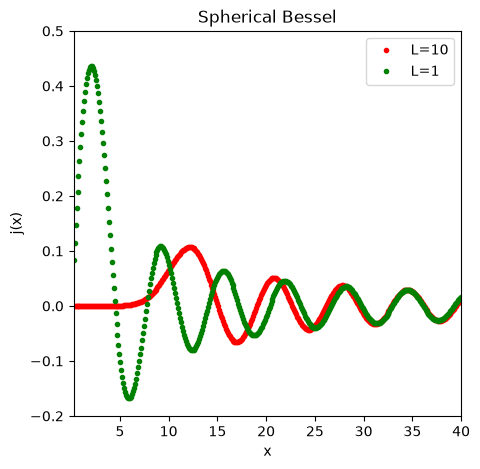

ax.plot(x, down(x, 10, 50), "r.", label="L=10")
ax.plot(x, down(x, 1, 50), "g.", label="L=1")
ax.legend()
plt.show()
